Bendel Blander

Præsentation

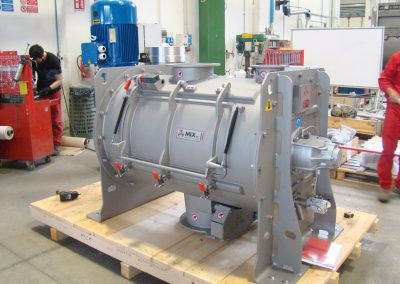

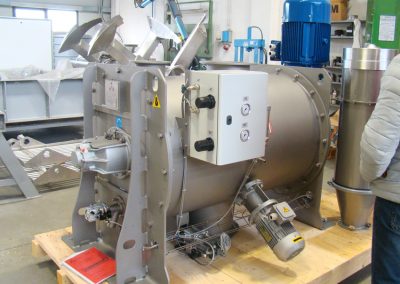

Bendel Blander

  • Blandere fås fra 80 liter til 35.000 liter i arbejdskapacitet.
  • Fås i ATEX version.
  • Mulighed for at flere produktindløb.

Batch proces betyder ikke-kontinuerlig. En forsimplet produktionssekvens ser som følger:

  • Udluftningstappen skal altid stå åben for at lukke luft ud igennem et filter, helst under en anelse tryk.
  • Produkt påfyldes igennem produktindløbet. Aflæsningsdøren skal være lukket.
  • Produktindløb skal være lukket. Kan være åben hvis lukket fodringstragt er installeret.
  • Blandingen tømmes igennem aflæsningsdøren.

Suitable for the following production processes:
• Mixing of powders / granules / flakes / fibers / pastes
• Wetting of solids with one or more liquids
• Heating /cooling / temperature keeping
• Keeping the product in movement (stirred bunker)

Main features
• Short mixing time
• High mixing quality
• Batches with repeatable results
• Gentle mixing
• Low maintenance

Techanical features
• Batch size: from 80 to 35.000 liters (net)
• Through “U” shaped mixing chamber
• MIxing tools: four ribbons, opposed two by two
• Material of costruction: carbon steel / Hardox 450 / AISI 304 / AISI 316 / AISI 316Ti
• Inspection door on the top flat cover, complete with sfaty grid and electric block
• Discharge door with round profile, building the bottom side of the mixing chamber
• Rotor shaft with turned and coaxial ends
• Rotor shaft sealing system with packing seals and wear resistant ferrules to protect the rotor shaft, prepared for flushing with air / nitrogen

Options
• Declaration of conformity for contact with food according to regulations 1935/2004 EC and 2023/2006 EC
• Declaration of conformity Atex II 1/3D Ex h IIIB T135°C Da/Dc (Inside Zone 20, Outside Zona 22)
• Wolfram carboide coating on the external profile of the mixing ribbon
• Liquid injection system
• Side mounted high speed choppers / Homogenizers
• Pneumatic sampler
• Pneumatic panel
• Heat exchanger on mixing chamber for heating / cooling processes
• Big bomb door on the whole length of the mixing chamber, to get an almost residue-free discharge in the shortest time
• Predisposition for CIP cleaning system
• Pneumatic cleaning of the mixing chamber
• Lip seal with air flushing
• Different finishes of parts in contact with product available on request.
• Easy access to the mixing chamber through an inspection door complete with safety electric lock

N-MX & A-MX Serier

STD ATEX TYPE ARBEJDSKAPACITET I LITER A B C
Minimum Maximum
N- A- MX.0075 10 65 750 710 510
N- A- MX.0150 20 125 1000 790 590
N- A- MX.0300 30 220 1000 950 770
N- A- MX.0420 50 330 1500 950 770
N- A- MX.0600 60 430 1250 1115 930
N- A- MX.0850 90 600 1750 1115 930
N- A- MX.1200 130 850 1750 1300 1090
STD ATEX TYPE ARBEJDSKAPACITET I LITER A B C
Minimum Maximum
N- A- MX.1700 160 1100 2250 1300 1090
N- A- MX.2400 260 1750 2000 1660 1450
N- A- MX.3400 320 2200 2500 1660 1450
N- A- MX.4800 500 3400 2500 1990 1780
N- A- MX.7000 700 4800 2400 2420 2100
N- A- MX.9500 1000 7000 3500 2420 2100
STD ATEX TYPE ARBEJDSKAPACITET I LITER A B C
Minimum Maximum
N- A- MX.H130 1300 9000 4500 2420 2100
N- A- MX.H160 1600 11000 4700 2580 2300
N- A- MX.H200 2000 13600 5000 2740 2460
N- A- MX.H260 2700 18000 5800 2900 2620
N- A- MX.H320 3300 22000 5500 2980 2940
N- A- MX.H400 4200 28000 7000 2980 2940
