VSD | Drop through rotary valve

COMAV’S DROP THROUGH ROTARY VALVES are designed to handle pneumatic conveying in dilute and dense phase for every industrial application such as food, plastic, rubber, chemical, pharmaceutical and mining. Thanks to COMAV’S TECHNOLOGY our valve is used for powder, granulate, flakes, pellets assuring a perfect reliability and meeting a wide range of customer’s requirements. The square flange and a special misalignment allows a complete cell discharge without any breakage of the product.

APPLICATIONS

Metering
Discharge
powder
Granulate
General pneumatic conveying

FEATRURES

PRESSURE: 1,5 bar
TEMP.: max 65°C
AIR LEAKAGE: See chart
INTEGRATED CASTING
INNER HOPPER (Better filling efficiency)
8 Vanes open or closed ends rotor

DESIGN

FLANGING: Square
SIZE: 200, 250, 320, 400, 480

HOUSING: Cast iron casting, stainless steel AISI 316L casting
ROTOR: Welded carbon steel or stainless steel AISI 304, AISI 316L

DRIVE: Direct drive as standard or chain transmission available in bare shaft version. all our drives can be controlled by inverter
ROBUST & COMPACT DESIGN: with minimal rotor tolerance

OPTIONALS

Actuator on cover side

Nickel coating ec1935/2004

Special execution for abrasive product

Special pipe on request
for special application

Special execution for direct fitting at piping

High temperature version

Adaptor kit

Download VSD Brochure

Teknisk Data | VDS med motor

VSD with motor

	A	B	V	D	E	F	G	L/Rev.	Rev.1′ max	POWER	WEIGHT
200	350	130	480	320	190	380	570	4,5	30	Kw 0.55	80 kg
250	350	160	510	380	205	395	600	8	30	Kw 0,55	106 kg
320	380	195	575	450	221	421	642	16	30	Kw 1.10	176 kg
400	400	240	640	570	280	482	762	37	30	Kw 1.50	282 kg
480	430	305	735	660	315	517	832	65	30	Kw 2.20	538 kg

NB. scroll horisontalt for fuld tabeloversigt.

Teknisk Data | – –

	A	B	C	D	E	F	G	H	I	J	K	L	M
200	320	190	267	ø30	47	130	132,5	20	200	140	285	225	3
250	380	205	282	ø30	47	160	157,5	25	230	160	335	265	3
320	450	221	304	ø35	53	195	192,5	40	260	200	365	305	3
400	570	280	368	ø40	56	240	237,5	55	370	260	475	365	4
480	660	315	405	ø52	65	305	282,5	70	444	300	570	425	4

NB. scroll horisontalt for fuld tabeloversigt.

	N	O	P	Q	R	S	T	U	L.Rev.	WEIGHT	GG
200	86	2	99	ø12	115	1	210	M10	4,5	64 kg	1/8″ gas
250	101	2	117	ø14	125	2	117,5	M10	8	90 kg	1/8″ gas
320	111	2	136	ø14	175	2	132,5	M10	16	147 kg	1/8″ gas
400	110	2	165	ø14	220	3	125	M10	37	260 kg	1/4″ gas
480	132	2	191	ø18	220	3	150	M10	65	492 kg	1/4″ gas

NB. scroll horisontalt for fuld tabeloversigt.

VSF | Blow through rotary valve

COMAV’S BLOW THROUGH ROTARY VALVES are designed to handle pneumatic conveying in dilute and dense phase for every industrial application such as food, plastic, rubber, chemical, pharmaceutical and mining.

Thanks to COMAV’S TECHNOLOGY, our vales are used for powder and fine products assuring a perfect reliability and meeting a wide range of customer’s requirements. The square flange and a special disalignment allows a complete cell discharge without any breakage of the product.

APPLICATIONS

Powder
Fine products
Vacuum conveying
Pneumatic conveying

FEATRURES

PRESSURE: 1,5 bar
TEMP.: max 65°C
AIR LEAKAGE: See chart in brochure
INTEGRATED CASTING
INNER HOPPER (Better filling efficiency)
8 vanes open ends rotor

DESIGN

FLANGING: Square
SIZE: 200, 250, 320, 400, 480

HOUSING: Cast iron casting, stainless steel AISI 304, AISI 316L
ROTOR: Welded carbon steel or stainless steel AISI 304, AISI 316L

DRIVE: Chain transmission as standard or direct drive.
Available in bare shaft version.
All our drives can be controlled by inventer.
ROBUST & COMPACT DESIGN: With minimal rotor tolerance

OPTIONALS

Different rotors for different products
Nickel coating

Nickel coating food grade
Hard chromium plating
Various polishing degrees
Food grade gasket
High temperature configuration
Feeding hopper complete with air intakes
Air blow-in purge

Air intakes holes on housing
Speed controller
Speeder control

Download VSF Brochure

Teknisk Data | VSF med motor

VSF Med Motor

	A	B	C	D	E	F	G	L.Rev.	Rev./1′ max	POWER	WEIGHT
200	360	132,5	492,5	320	235	280	515	4,5	30	0,37 Kw	90 kg
250	410	157,5	567,5	380	255	295	550	8	30	0,55 Kw	127 kg
320	455	192,5	647,5	450	274	321	595	16	30	0,75 Kw	196 kg
400	555	237,5	792,5	570	285	380	665	37	30	1,10 Kw	345 kg
480	635	282,5	917,5	660	255	425	680	65	30	1,50 Kw	585 kg

NB. scroll horisontalt for fuld tabeloversigt.

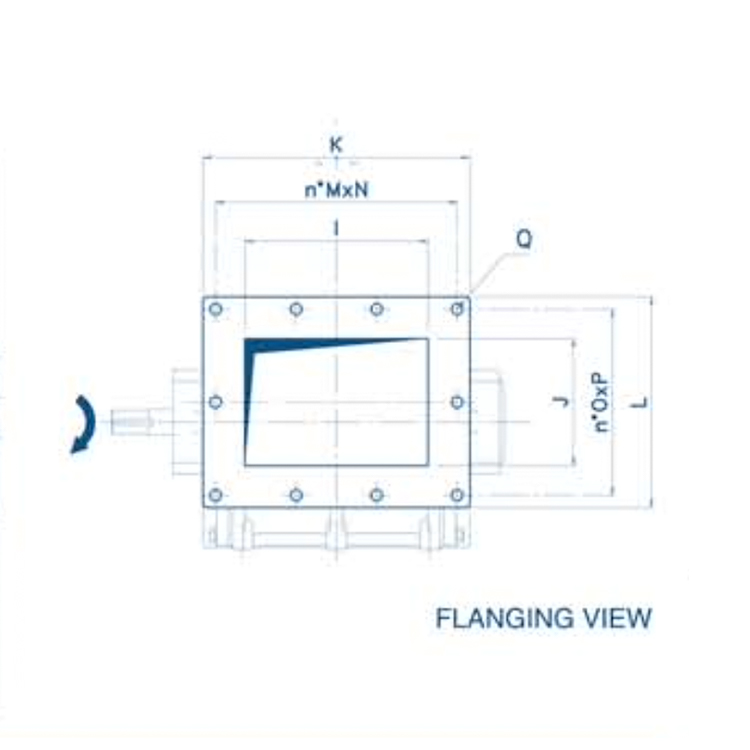

Teknisk Data | VSF

	A	B	C	D	E	F	G	H	I	J	K	L	M	N	O	P
200	320	190	267	ø30	47	130	132,5	20	200	140	285	225	3	86	2	99
250	380	205	282	ø30	47	160	157,5	25	230	160	335	265	3	101	2	117
320	450	221	304	ø35	53	195	192,5	40	260	200	365	305	3	111	2	136
400	570	280	368	ø40	56	240	237,5	55	370	260	475	365	4	110	2	165
480	660	315	405	ø52	65	305	282,5	70	444	300	570	425	4	132	2	191

NB. scroll horisontalt for fuld tabeloversigt.

Q

R

S

T

U

V

W

X

Y

Z

X1

X2

L.Rev.

WEIGHT

GG

200

ø12

115

1

210

M10

70

380

ø60

100

M10

ø90

ø110

4,5

68 kg

1/8″ gas

250

ø

125

2

117,5

M10

85

410

ø77

117

M10

ø110

ø130

8

98 kg

1/8″ gas

320

ø

175

2

132,5

M10

100

442

ø99

148

M10

ø140

ø160

16

160 kg

1/8″ gas

400

ø

220

3

125

M10

131

560

ø129

189

M12

ø170

ø200

37

285 kg

1/4″ gas

480

ø

220

3

150

M10

147,5

630

ø156

108

M14

ø210

ø240

65

510 kg

1/4″ gas

NB. scroll horisontalt for fuld tabeloversigt.

VSDT | Drop through rotary valve

COMAV’S DROP THROUGH ROTARY VALVES are designed to handle pneumatic conveying in dilute phase for every industrial application such as food, plastic, rubber, chemical, pharmaceutical and mining.

Thanks to COMAV’S TECHNOLOGY, our valves are used for powder, granulate, pellets assuring a perfect reliability an meeting a wide range of customer’s requirements.

The round flange allows an easy connection with line/equipment.

APPLICATIONS

Metering
Discharge
powder
Granulate
General pneumatic conveying

FEATRURES

PRESSURE: 1,5 bar
TEMP.: max 65°C
AIR LEAKAGE: See chart
INTEGRATED CASTING
INNER HOPPER (Better filling efficiency)
8 Vanes open or closed ends rotor

DESIGN

FLANGING: Round uni PN 10
SIZE: DN200, DN250

HOUSING: Cast iron casting
ROTOR: Welded carbon steel or stainless steel AISI 304, AISI 316L

DRIVE: Direct drive or chain transmission available in bare shaft version.
All our drives can be controlled by inverter
ROBUST & COMPACT DESIGN: wWith minimal rotor tolerance

OPTIONALS

Different rotors for different products
Nickel coating

Nickel coating food grade
Hard chromium plating
Various polishing degrees
Food gasket
High temperature configuration
Feeding shoe
Feeding hopper complete with air intakes
Air blow-in purge

Air intakes holes on housing
Speed controller

Download VSDT Brochure

Teknisk Data | VSDT med motor

VSDT Med Motor

	A	B	C	D	E	F	G	H	L.Rev.	Rev./1″ max	POWER	WEIGHT
150	412	ø250	260	158	325	483	482	31	2,2	30	Kw 0,18	60 kg
200	400	ø340	340	195	385	580	180	75	4,5	30	Kw 0,55	95 kg
250	400	ø395	400	210	400	610	150	75	8	30	Kw 0,75	115 kg
300	450	ø445	500	225	420	645	180	87	16	30	Kw 1,10	176 kg

NB. scroll horisontalt for fuld tabeloversigt.

Teknisk Data | VSDT

VSDT

ø350ø326221

	A	B	C	D	E	F	F1	G	H	I	J	K	L	M	L./Rev.	N
150	260	152	235	ø25	70	ø135	ø135	ø210	ø250	8xM16	1	165	110	4xM10	2,2	1/8″ gas
200	340	190	267	ø30	47	ø200	ø200	ø295	ø340	8xM22	1	210	115	4xM10	4,5	1/8″ gas
250	400	205	282	ø30	47	ø265	ø265	ø350	ø395	12xM22	2	117,5	125	6xM10	8	1/8″ gas
300	500	221	304	ø35	53	ø326	ø326	ø400	ø445	12xM22	2	132,5	175	6xM10	16	1/8″ gas

NB. scroll horisontalt for fuld tabeloversigt.

VSFT | Blow through rotary valve

COMAV’S BLOW THROUGH ROTARY VALVES are designed to handle pneumatic conveying in dilute and dense phase for every industrial application such as food, plastic, rubber, chemical, pharmaceutical and mining.

Thanks to COMAV’S TECHNOLOGY, our valves are used for powder and fine products assuring a perfect reliability and meeting a wide range of customer’s requirements. The round flange allows an easy connection with line/equipment .

APPLICATIONS

Powder
Fine products
Vacuum conveying
Pneumatic conveying

FEATRURES

PRESSURE: 1,5 bar
TEMP.: max 65°C
AIR LEAKAGE: See chart in brochure
INTEGRATED CASTING
INNER HOPPER (Better filling efficiency)
8 vanes open ends rotor

DESIGN

FLANGING: Round uni PN 10
SIZE: 200, 250, 320, 400, 480

HOUSING: Cast iron casting
ROTOR: Welded carbon steel or stainless steel AISI 304, AISI 316L

DRIVE: Chain transmission as standard or direct drive.
Available in bare shaft version.
All our drives can be controlled by inventer.
ROBUST & COMPACT DESIGN: With minimal rotor tolerance

OPTIONALS

Different rotors for different products
Nickel coating

Nickel coating food grade
Hard chromium plating
Various polishing degrees
Food grade gasket
High temperature configuration
Feeding hopper complete with air intakes
Air blow-in purge

Air intakes holes on housing
Speed display
Speeder controller

Download VSFT Brochure

Teknisk Data | VSFT med motor

VSF Med Motor

	A	B	C	D	E	F	G	L.Rev.	Rev./1′ max	POWER	WEIGHT
200	360	ø340	340	250	280	530	515	4,5	30	0,55 Kw	110 kg
250	410	ø395	400	255	295	550	550	8	30	0,75 Kw	130 kg

NB. scroll horisontalt for fuld tabeloversigt.

Teknisk Data | VSFT

A

B

C

D

E

F

F1

G

H

I

J

K

150

260

152

253

ø25

70

ø135

ø210

ø250

8xM16

1

165

200

340

190

267

ø35

47

ø200

ø295

ø340

8xM22

1

210

250

400

205

282

ø35

47

ø265

ø350

ø395

12xM22

2

117,5

300

500

221

304

ø35

53

ø326

ø400

ø445

12xM22

2

132,5

NB. scroll horisontalt for fuld tabeloversigt.

	L	M	O	P	Q	R	S	T	U	L./Rev.	N
150	110	4xM10	45	ø47	ø80	ø100	M8	42	50	2,2	1/8″ gas
200	115	4xM10		ø60	ø90	ø110	M10	55	55	4,5	1/8″ gas
250	125	6xM10		ø77	ø110	ø130	M10	65	65	8	1/8″ gas
300	175	6xM10		ø99	ø140	ø160	M10	80	80	16	1/8″ gas

NB. scroll horisontalt for fuld tabeloversigt.

VSFC | Blow through rotary valve

VSFC ROTARY VALVE is designed to discharge containers holding powder and granulate.

Thanks to COMAV’S TECHNOLOGY VSFC can be used upon all hard application assuring an average discharge time of 50/60 minutes per 30” container.
The capacity of valve and its shape are in according to the main logistic companies’ needs.

APPLICATIONS

On chassis
General pneumatic conveying
Powder
Granulate

FEATRURES

PRESSURE: -0,5 bar, +2 bar
MAX PRESSURE FOR HYDRAULIC MOTOR: 70 bar

QUANTITY OR REQUET OIL: 50kg/min(in case of
hydraulic motor)

TEMPERATURE: max 65°C
ROTATION SPEED: 42rpm max
INTEGRATED CASTING
INNER HOPPER (Better filling efficiency)
OPEN ENDS ROTOR: Up to 10 vanes

DESIGN

FLANGING: Square
SIZE: 320

HOUSING: Cast iron casting, stainless steel AISI 316L casting
ROTOR: Welded carbon steel or stainless steel AISI 304, AISI 316L

DRIVE: Direct drive, chain transmission. Electric or hydraulic

motor available in bare shift version.
ROBUST & COMPACT DESIGN: With minimal rotor tolerance

OPTIONALS

Different rotors for different products
Nickel coating

Nickel coating food grade
Hard chromium plating
Various polishing degrees
Food grade gasket
High temperature configuration
Feeding hopper complete with air intakes
Air blow-in purge

Air intakes holes on housing
Speed display
Speeder controller

Download VSFC Brochure

Teknisk Data | VSFC

VSFC

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q1

Q2

R

S

T

U

V

W

X

X1

X2

Y1

Y2

Z

L.Rev.

WEIGHT

GG

320

441

309

409

ø35

70

193

222,5

40

385

265

475

365

4

110

2

165

M12

ø14

130

91

164,5

M10

88

617

ø99

ø140

ø160

150

180

M10

29

170 kgh

1/8″ gas

NB. scroll horisontalt for fuld tabeloversigt.

Cookie	Duration	Description
cookielawinfo-checkbox-analytics	11 months	This cookie is set by GDPR Cookie Consent plugin. The cookie is used to store the user consent for the cookies in the category "Analytics".
cookielawinfo-checkbox-functional	11 months	The cookie is set by GDPR cookie consent to record the user consent for the cookies in the category "Functional".
cookielawinfo-checkbox-necessary	11 months	This cookie is set by GDPR Cookie Consent plugin. The cookies is used to store the user consent for the cookies in the category "Necessary".
cookielawinfo-checkbox-others	11 months	This cookie is set by GDPR Cookie Consent plugin. The cookie is used to store the user consent for the cookies in the category "Other.
cookielawinfo-checkbox-performance	11 months	This cookie is set by GDPR Cookie Consent plugin. The cookie is used to store the user consent for the cookies in the category "Performance".
viewed_cookie_policy	11 months	The cookie is set by the GDPR Cookie Consent plugin and is used to store whether or not user has consented to the use of cookies. It does not store any personal data.
