Mikrodosering
F-series | Single screw feeder
The F Series single screw feeders are designed for feeding powders, granules and synthetic fibers. Available both in volumetric and loss-in-weight releases with electronic load cell system, they ensure precision and reliability.
These feeders are used in different configurations in all industrial sectors, from cement to chemicals and in the special release entirely made in stainless steel AISI 316L in the food and pharmaceutical industries. The different configurations available made them suitable for processing materials with very different grain size, fluidity and density.
Available also in ATEX release.
| CHARACTERISTICS | STANDARD | ON REQUEST | ||
| Construction material | Aisi 304 | Aisi 316L | ||
| Exterior finish | Satin finish 180 mesh | Polishing | Electro polishing | |
| Interior finish | 2b | Polishing | Electro polishing | |
| Connections | Fast unlock© | Knobs | Hooks | |
| Connection to the structure | N°2 saddle + bolts | Side brackets on the hopper | ||
| Screw | See specific document | |||
| Outlet | Vertical cylindrical | Pneumatic shutter. | Extended outlet | Clamp |
| Homogenizer | Plowshares | Blades/pegs | ||
| Volumetric System | – | |||
| Loss in weight system | Weighing system (n°1 off-center load cell) | |||
| Loss in weight system | Side load cells on the hopper (n°2 load cells integrated in the structure) | |||
| Adapter (N°2) | Endless screw | |||
| Atex | Gr. II cat.3 | Gr. II cat.2 | ||
| MODEL |
dm3/h |
||||||||||||
| VOLUMETRIC | GRAVIMETRIC |
1 | 7,5 | 15 | 25 | 125 | 250 | 800 | 1600 | 3200 | 6500 | 13000 | |
| FSV020D | FSG020D | FSH020D | |||||||||||
| FSV030D | FSG030D | FSH030D | |||||||||||
| FRV030DFRG | FRG030D | FRH030D | |||||||||||
| FRV040D | FRG040D | FRH040D | |||||||||||
| FMV060D | FMG060D | FMH060D | |||||||||||
| FMV080D | FMG080D | FMH080D | |||||||||||
| FLV100D | FLG100D | FLH100D | |||||||||||
| FLV120D | FLG120D | FLH120D | |||||||||||
D-series | Double screw feeders
When in addition to precision a high consistency of feeding is required, it is necessary to use a twin screw system. The D Series feeders, equipped with twin extraction screw, ensure a homogenous material flow due to the particular machine process, that ensure a perfect coupling. The D Series twin screw feeders are designed for feeding materials in powder and synthetic fibers and are especially recommended for very fine powders.
Available both in volumetric and loss-in-weight release with an electronic load cell system, they are used in different configurations in all industrial sectors, from cement to chemicals and in the special releases made entirely of stainless steel AISI 304 in the food and pharmaceutical industries.
Also available in ATEX release.
| CHARACTERISTICS | STANDARD | ON REQUEST | ||
| Construction material | Aisi 304 | Aisi 316L | ||
| Exterior finish | Satin finish 180 mesh | Polishing | Electro polishing | |
| Interior finish | 2b | Polishing | Electro polishing | |
| Connections | Fast unlock© | Knobs | Hooks | |
| Connection to the structure | N°2 saddles + bolts | Side brackets on the hopper | ||
| Screw | See specific document | |||
| Outlet | Vertical cylindrical | Pneumatic shutter. | Extended outlet | Clamp |
| Homogenizer | Plowshares | Blades/pegs | ||
| Volumetric System | – | |||
| Loss in weight system | Weighing system (n°1 off-center load cell) | |||
| Loss in weight system | Side load cells on the hopper (n°3 load cells 120°) | |||
| Adapter (N°2) | Endless screw | |||
| Atex | Gr. II cat.3 | Gr. II cat.2 | ||
| MODEL |
dm3/h |
||||||||||
| VOLUMETRIC | GRAVIMETRIC |
1 | 10 | 15 | 50 | 150 | 200 | 500 | 1000 | 2000 | |
| DSV020D | DSG020D | DSH020D | |||||||||
| DRV030D | DRG030D | DRH030D | |||||||||
| DMV040D | DMG040D | DMH040D | |||||||||
| DLV060D | DLG060D | DLH060D | |||||||||
C-series | Vibrating channel feeders
The C Series vibrating channel feeders, thanks to their operating principle, feed every product without damaging it mechanically or affecting its exterior. This distinctive feature makes them suitable for feeding fragile raw materials with irregular sizes such as tablets, granules, fakes and stringy products. Available in both volumetric and loss-in-weight releases with electronic twin load cell system, they ensure accuracy and reliability.
They are used in the various configurations in all the industrial sectors, from plastics, to the food industry in the dedicated releases, completely made of AISI 316L stainless steel, in the chemical and pharmaceutical industries. The different available configurations make them suitable for processing large materials with very different fluidity and density.
They are also available in ATEX release.
| CHARACTERISTICS | STANDARD | ON REQUEST | ||
| Construction material | Aisi 304 | Aisi 316L | ||
| Exterior finish | Satin finish 180 mesh | Polishing | Electro polishing | |
| Interior finish | 2b | Polishing | Electro polishing | |
| Connections | Fast unlock© | knobs | hooks | |
| Connection to the structure | N°4 supporting feet | |||
| Vibrating system | Linear | With control prob | ||
| Outlet | Frontal | Vertial cylindrical | ||
| Volumetric System | – | |||
| Loss in weight system | Side load cells (n°2 load cells integrated in the structure) | |||
| Atex | Gr. II cat.3 | Gr. II cat.2 | _ | |
| MODEL |
dm3/h |
|||||||||||
| VOLUMETRIC | GRAVIMETRIC | 1 | 10 | 50 | 100 | 200 | 500 | 1000 | 1500 | 2500 | 3000 | 4000 |
| CSV | CSG | |||||||||||
| CRV | CRG | |||||||||||
| CMV | CMG | |||||||||||
| CLV | CLG | |||||||||||

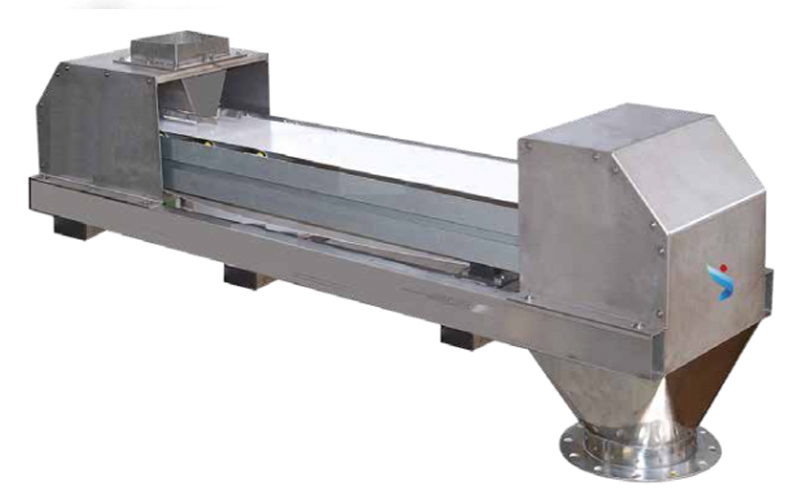

BWF-series | Belt feeders
The BWF series belt feeders are used to feed every type of material even with very irregular grain size. A strong aluminum frame ensures its rigidity; the integrated twin load cell system and the calibrated feeder ensure accuracy of feeding to the maximum required standards.
Available in open release or totally enclosed for maximum protection and environmental cleanliness.
| CHARACTERISTICS | STANDARD | ON REQUEST |
| Chassis material | Aluminium | Fe 360 – AISI 304 |
| Feeder material | PVC | Food, wear resistant |
| Feeder centering system | Covex rollers | Pneumatic device |
| Feeder tension system | Manual | Counterweight |
| Feeder cleaning system | eWear resistant scrapers | PTFE Scrapers |
| Weight monitoring system | 2 cell loading bridge | Version ATEX zone 2D |
| Speed monitoring system | Encoder | Version ATEX zone 2D |
| Optionals | See specific document |
|
| dm3/h |
|||||||||||
| MODEL | 0,1 | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 50 | 80 |
| BW025 | |||||||||||
| BW035 | |||||||||||
| BW055 | |||||||||||
| BW080 | |||||||||||
| BW120 | |||||||||||
GM-series | Screw feeders for fibrous and ground flakes
The GM series single screw feeders are ideal for feeding synthetic stringy or irregular shaped materials after the grinding process (flakes).
Available in both volumetric and loss-in-weight versions with electronic load cell system, they ensure accuracy and reliability. They are used in different configurations in all applications in which it is necessary to re-use recycled plastics (ground and flakes) or to feed binding agents (fibers) in building or plastic compounds in order to increase their mechanical resistance.
| CHARACTERISTICS | STANDARD | ON REQUEST | ||
| Body material | Aisi 304 | |||
| Screw material | Aisi 304 | |||
| Exterior finish | Satin finish 180 mesh | |||
| Interior finish | 2b | Ganci comm.li | ||
| Connections | Bolts | knobs | hooks | |
| Connection to the structure | N°2 saddles + bolts | Side brackets on the hopper | ||
| Screw | See specific document | |||
| Outlet | Frontal flanged | Vertial cylindrical | ||
| Adapter | Endless screw | |||
| Volumetric system | – | |||
| Gravimetric system | Weighting system (n°1 off center load cell) | |||
| Gravimetric system | Side load cells on the hopper (n°3 load cells 120°) | |||
| Atex | Gr. II cat.3 | Gr. II cat.2 | _ | |
| MODEL |
dm3/h |
|||||||
| VOLUMETRIC | GRAVIMETRIC | 125 | 250 | 800 | 1600 | 3200 | 6500 | 13000 |
| GMV060 | GMG060 | |||||||
| GMV080 | GMG080 | |||||||
| GMV100 | GMG100 | |||||||
G-series | Screw feeders for granulated materials
The G Series screw feeders are used for the loss-in-weight feeding of granular shaped bulk materials. The composition of the various sizes and the flexibility of each component create the possibility of having compact feeding units that are easy to use. The ease with which they can be dismantled makes faster the cleaning and the screw replacement.
| CHARACTERISTICS | STANDARD | ON REQUEST |
|
| Body material | aluminimum | ||
| Screw material | Carbon steel | ||
| Connections | Fast unlock | knobs | hooks |
| Connection to the structure | N°2 saddles + bolts | Side brackets on the hopper | |
| Screw | See specific document | ||
| Outlet | Horizontal flanged | Vertial cylindrical | |
| Adapter | Endless screw | ||
| Loss in weight system | n°1 off-center load cell | ||
| dm3/h |
||||||||||||
| MODEL | 3 | 20 | 30 | 40 | 50 | 100 | 150 | 200 | 250 | 400 | 500 | 1500 |
| XSGO15M | ||||||||||||
| XSGO16M | ||||||||||||
| XSGO19M | ||||||||||||
| XSGO20M | ||||||||||||
| XSGO23M | ||||||||||||
| XSGO25M | ||||||||||||
| XSGO29M | ||||||||||||
| XSGO30M | ||||||||||||
| XSGO35M | ||||||||||||
| XSGO38M | ||||||||||||
| XSGO40M | ||||||||||||
| XSGO60M | ||||||||||||
WLQ-series | Dosing system for liquids
The dosing system for liquids WLQ series are the most precise and versatile for dosing liquids of all types and viscosity. When the objective is extreme precision the system is based on diverse aspects:
the choice of the weighing system (A-B-C-);
the type of pump to use (lobe, diaphragm, peristaltic…);
the dynamic reading logic of the signal supplied by the installed components. from 2 to 20 from 20 to 100 from 100 to 500
An accurate software prepared is able to manage feeders in continuous or in batches with extremely low flow rates. It further manages different phases of the production cycle such as the refilling of the tack.
| CHARACTERISTICS | STANDARD | ON REQUEST |
| Tank | Aisi 304 | AISI 316L |
| External finishing | Satinizing 180 mesh | Ra 0,4 polishing |
| Internal finishing | 2B | Ra 0,4 polishing |
| Gaskets | NBR | NBR supply / PTFE |
| Load cell A | Off-center | PUR supply / (FDA) |
| Load cell B | Compressed | |
| Load cell C | Compressed | |
| Pumps | Dimension to dose according to liquid technical card |
|
| MODEL | dm3/h | |||||
| Volumetric | 2 | 20 | 100 | 500 | 1000 | 10000 |
| WLQ-A | ||||||
| WLQ-B | ||||||
| WLQ-C | ||||||
