Niveauindikator

til korrosion

Niveauindikator :-: Korrosion

Niveaumålere til brug for kontakt med korroderende faste eller flydende materialer. Alle dele i kontakt med materialet er udført i rustfrit stål (AISI 304 medmindre andet er nævnt).

CLR20

Float level indicator allows the measurement and control of liquids in industrial tanks

PFG05X

Bladed level indicator in stainless steel with thread

PFG05XF

Bladed level indicator in stainless steel with flange

PFG57X

Small-sized bladed level indicator in stainless steel with thread

PFG57XF

Small-sized bladed level indicator in stainless steel level with flange

PFG09

Flameproof bladed level indicator with thread

PFG09F

Flameproof bladed level indicator with flange

PFG09ZF

Flameproof bladed level indicator with flange

PFGLP

Floating level with flange – IECEX

PFGLPC

Bent floating level with flange – IECEX

PFGLP22

Floating level with thread

PFGLP22C

Bent floating level with thread

PFGLP22F

Floating level with flange

PFGLP22FC

Bent floating level with flange

CLR20

The float level indicator CLR20 allows the measurement and control of liquids in industrial tanks, even in the presence of foam. It is composed of a permanent magnet and a frictionless reed switch, which guarantee robustness and reliability. The D.52 spheric float, the G 3/8” connection and the autonomous power supply allow for a small footprint installation. A curved version is available for lateral installations.

The operation of the float level indicator CLR20 is ensured in environments with temperature between -10 and +70°C and pressure up to 15 bar. Customizations can be made on the number of levels to measure, cable length and connector output.

Advantages of the float level indicator CLR20:

Easy installation. The product does not require calibration, maintenance or specific instruments for the installation.
Autonomous. It does not require external power supply.
Compact. The D.52 spheric float and the G 3/8” connection allow for a small footprint installation.
Adaptable to any liquid, even in the presence of foam.
Versatile installation, in vertical and lateral position.

Customizable with extensions, cable length on request and more levels of measurement.

PFG05X

This unit, strongly manufactured, is very safe and is particularly designed on conditions of hard work and continuous cycles. Parts in contact with the product in Stainless steel. Version with male thread 2″1/2 Gas.

Construction is made in compliance with the regulations in force in the European Union.

Certificate: TÜV IT 16 ATEX 063 X
Marking: Ex II 1/2 D Ex ta/tb IIIC T85°C IP65 Da/Db

Die-cast aluminium casing, protection IP65.
Stainless steel shaft on ball bearings.
Available power supplies:
- V.110/220 a.c. 50/60 Hz.
- V.24/48 a.c. 50/60 Hz.
- V. 24 d.c.
Use contact capacity: 10 A at 250 V AC.
Output speed (screw shaft): 1,5 rpm.
Maximum operational pressure: 1,1 bar.
Ambient temperature range: -20 to +70°C.

PFG57XF

This unit, strongly manufactured, is very safe and is particularly designed on conditions of hard work and continuous cycles. Parts in contact with the product in stainless steel. Version with flange.

Construction is made in compliance with the regulations in force in the European Union.

Certificate: TÜV IT 16 ATEX 063 X
Marking: Ex II 1/2 D Ex ta/tb IIIC T85°C IP65 Da/Db

Die-cast aluminium casing, protection IP65.
Stainless steel shaft on ball bearings.
Available power supplies:
- V.110/220 a.c. 50/60 Hz.
- V.24/48 a.c. 50/60 Hz.
- V. 24 d.c.
Use contact capacity: 10 A at 250 V AC.
Output speed (screw shaft): 1,5 rpm.
Maximum operational pressure: 1,1 bar.
Ambient temperature range: -20 to +70°C.

PFG57X

Small-sized bladed level gauge particularly suitable for use on small tanks or batching cells. Parts in contact with the products in stainless steel. Version with male thread 1″1/2 Gas.

Construction is made in compliance with the regulations in force in the European Union.

Certificate: TÜV IT 13 ATEX 070
Marking: Ex II 1/2 D Ex ta/tb IIIC T85°C IP65 Da/Db

Die-cast aluminium casing, protection IP65.
Stainless steel shaft on ball bearings.
Available power supplies:
- V.110/220 a.c. 50/60 Hz.
- V.24/48 a.c. 50/60 Hz.
- V. 24 d.c.
Use contact capacity: 5 A at 250 V AC.
Output speed (screw shaft): 1,5 rpm.
Maximum operational pressure: 1,1 bar.
Ambient temperature range: -20 to +70°C.

PFG57XF

Small-sized bladed level gauge particularly suitable for use on small tanks or batching cells. Parts in contact with the products in stainless steel. Version with flange.

Construction is made in compliance with the regulations in force in the European Union.

Certificate: TÜV IT 13 ATEX 070
Marking: Ex II 1/2 D Ex ta/tb IIIC T85°C IP65 Da/Db

Die-cast aluminium casing, protection IP65.
Stainless steel shaft on ball bearings.
Available power supplies:
- V.110/220 a.c. 50/60 Hz.
- V.24/48 a.c. 50/60 Hz.
- V. 24 d.c.
Use contact capacity: 5 A at 250 V AC.
Output speed (screw shaft): 1,5 rpm.
Maximum operational pressure: 1,1 bar.
Ambient temperature range: -20 to +70°C.
Max. temperature storage bin inside: +80° C.

PFG09

Flameproof level gauge manufactured according to ATEX rules. Designed for plants or rooms where, owning to chemical processing or particular products flammable and explosive tunings may develop, making it dangerous to use electric operating units not properly designed for this.

Certificate: TÜV IT 13 ATEX 072
Marking: Ex II 1/2 D Ex ta/tb IIIC T85°C IP65 Da/Db
Ex II 2 G Ex d IIB T6 Gb

Die-cast aluminium casing, protection IP65.
Stainless steel shaft on ball bearings.
Available power supplies:
- V.110/220 a.c. 50/60 Hz.
- V.24/48 a.c. 50/60 Hz.
- V. 24 d.c.
Use contact capacity: 10 A at 250 V AC.
Output speed (screw shaft): 1,5 rpm.
Ambient temperature range: -20 to +70°C.

PF09F

Flameproof level gauge manufactured according to ATEX rules. Designed for plants or rooms where, owning to chemical processing or particular products flammable and explosive tunings may develop, making it dangerous to use electric operating units not properly designed for this.

Certificate: TÜV IT 13 ATEX 072
Marking: Ex II 1/2 D Ex ta/tb IIIC T85°C IP65 Da/Db
Ex II 2 G Ex d IIB T6 Gb

Die-cast aluminium casing, protection IP65.
Stainless steel shaft on ball bearings.
Available power supplies:
- V.110/220 a.c. 50/60 Hz.
- V.24/48 a.c. 50/60 Hz.
- V. 24 d.c.
Use contact capacity: 10 A at 250 V AC.
Output speed (screw shaft): 1,5 rpm.
Ambient temperature range: -20 to +70°C.

PFG09ZF

Flameproof level gauge manufactured according to ATEX rules. Designed for plants or rooms where, owning to chemical processing or particular products flammable and explosive tunings may develop, making it dangerous to use electric operating units not properly designed for this.

Certificate: TÜV IT 13 ATEX 072
Marking: Ex II 1/2 D Ex ta/tb IIIC T85°C IP65 Da/Db
Ex II 1/2 G Ex d IIB T6 Ga/Gb

Die-cast aluminium casing, protection IP65.
Stainless steel shaft on ball bearings.
Available power supplies:
- V.110/220 a.c. 50/60 Hz.
- V.24/48 a.c. 50/60 Hz.
- V. 24 d.c.
Use contact capacity: 10 A at 250 V AC.
Output speed (screw shaft): 1,5 rpm.
Ambient temperature range: -20 to +70°C.

PFGLP

Floating level indicator for detecting the level of liquids in tanks and cisterns. Parts in contact with the product in stainless steel. Version with flange DN40.

Construction is made in compliance with the regulations in force in the European Union.

IECEX Certification
Certificate: QAR TUN 08.0033
Marking: Ex d IIB T4 Gb – Ex tD A21 IIIC T135°C Db IP65

ATEX Certification
Certificate: TÜV 08 ATEX 362388 X
Marking: Ex II 2GD Ex d IIB T4 Ex tD A21 IP65 T135°C

Die-cast aluminium casing, protection IP65.
Flange and float in stainless steel 18/10.
Covering bellow for the joint of the float in rubber.
Wiring with antivibrations Faston connectors.
Use contact capacity: 10 A at 250 V AC.
Maximum operational pressure: 25 bar.
Ambient temperature range: -10 to +100°C.

PFGLPC

Floating level indicator for detecting the level of liquids in tanks and cisterns. Parts in contact with the product in stainless steel. Version with flange DN40 and bent float.

Construction is made in compliance with the regulations in force in the European Union.

IECEX Certification
Certificate: QAR TUN 08.0033
Marking: Ex d IIB T4 Gb – Ex tD A21 IIIC T135°C Db IP65

ATEX Certification
Certificate: TÜV 08 ATEX 362388 X
Marking: Ex II 2GD Ex d IIB T4 Ex tD A21 IP65 T135°C

Die-cast aluminium casing, protection IP65.
Flange and float in stainless steel 18/10.
Covering bellow for the joint of the float in rubber.
Wiring with antivibrations Faston connectors.
Use contact capacity: 10 A at 250 V AC.
Maximum operational pressure: 25 bar.
Ambient temperature range: -10 to +100°C.

PFGLP22

Floating level indicator for detecting the level of liquids in tanks and cisterns. Parts in contact with the product in stainless steel. Version with male thread 2″ Gas.

Construction is made in compliance with the regulations in force in the European Union.

ATEX certified: Ex II 3GD Ex n T4 IIB Ex GD A22 T120 °C IP65 – CL 07 ATEX 0206

Die-cast aluminium casing, protection IP65.
Thread and float in stainless steel 18/10.
Covering bellow for the joint of the float in rubber.
Wiring with antivibrations Faston connectors.
Use contact capacity: 10 A at 250 V AC.
Maximum operational pressure: 25 bar.
Ambient temperature range: -10 to +120°C.

PFGLP22C

Floating level indicator for detecting the level of liquids in tanks and cisterns. Parts in contact with the product in stainless steel. Version with male thread 2″ Gas and bent float.

Construction is made in compliance with the regulations in force in the European Union.

ATEX certified: Ex II 3GD Ex n T4 IIB Ex GD A22 T120 °C IP65 – CL 07 ATEX 0206

Die-cast aluminium casing, protection IP65.
Thread and float in stainless steel 18/10.
Covering bellow for the joint of the float in rubber.
Wiring with antivibrations Faston connectors.
Use contact capacity: 10 A at 250 V AC.
Maximum operational pressure: 25 bar.
Ambient temperature range: -10 to +120°C.

PFGLP22F

Floating level indicator for detecting the level of liquids in tanks and cisterns. Parts in contact with the product in stainless steel. Version with flange.

Construction is made in compliance with the regulations in force in the European Union.

ATEX certified: Ex II 3GD Ex n T4 IIB Ex GD A22 T120 °C IP65 – CL 07 ATEX 0206

Die-cast aluminium casing, protection IP65.
Flange and float in stainless steel 18/10.
Covering bellow for the joint of the float in rubber.
Wiring with antivibrations Faston connectors.
Use contact capacity: 10 A at 250 V AC.
Maximum operational pressure: 25 bar.
Ambient temperature range: -10 to +120°C.

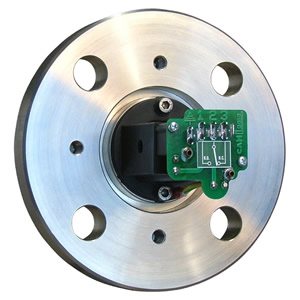

PFGLP22FC

Float level indicator for detecting the level of liquids in tanks and cisterns. Parts in contact with the product in stainless steel. Version with flange and bent float.

Construction is made in compliance with the regulations in force in the European Union.

ATEX certified: Ex II 3GD Ex n T4 IIB Ex GD A22 T120 °C IP65 – CL 07 ATEX 0206

Die-cast aluminium casing, protection IP65.
Flange and float in stainless steel 18/10.
Covering bellow for the joint of the float in rubber.
Wiring with antivibrations Faston connectors.
Use contact capacity: 10 A at 250 V AC.
Maximum operational pressure: 25 bar.
Ambient temperature range: -10 to +120°C.
