Niveauindikator

for væsker

Niveauindikator :-: Væsker

Instrument til væskeniveaukontrol, både ledende og ikke-ledende væsker.

CLR20

Float level indicator allows the measurement and control of liquids in industrial tanks

CLC38

Conductive level controller

CLC40

Conductive level controller

PFGLP

Floating level with flange – IECEX

PFGLPC

Bent floating level with flange – IECEX

PFGLP22

Floating level with thread

PFGLP22C

Bent floating level with thread

PFGLP22F

Floating level with flange

PFGLP22FC

Bent floating level with flange

SGP330

Flow sensor

SGP331

Flow sensor

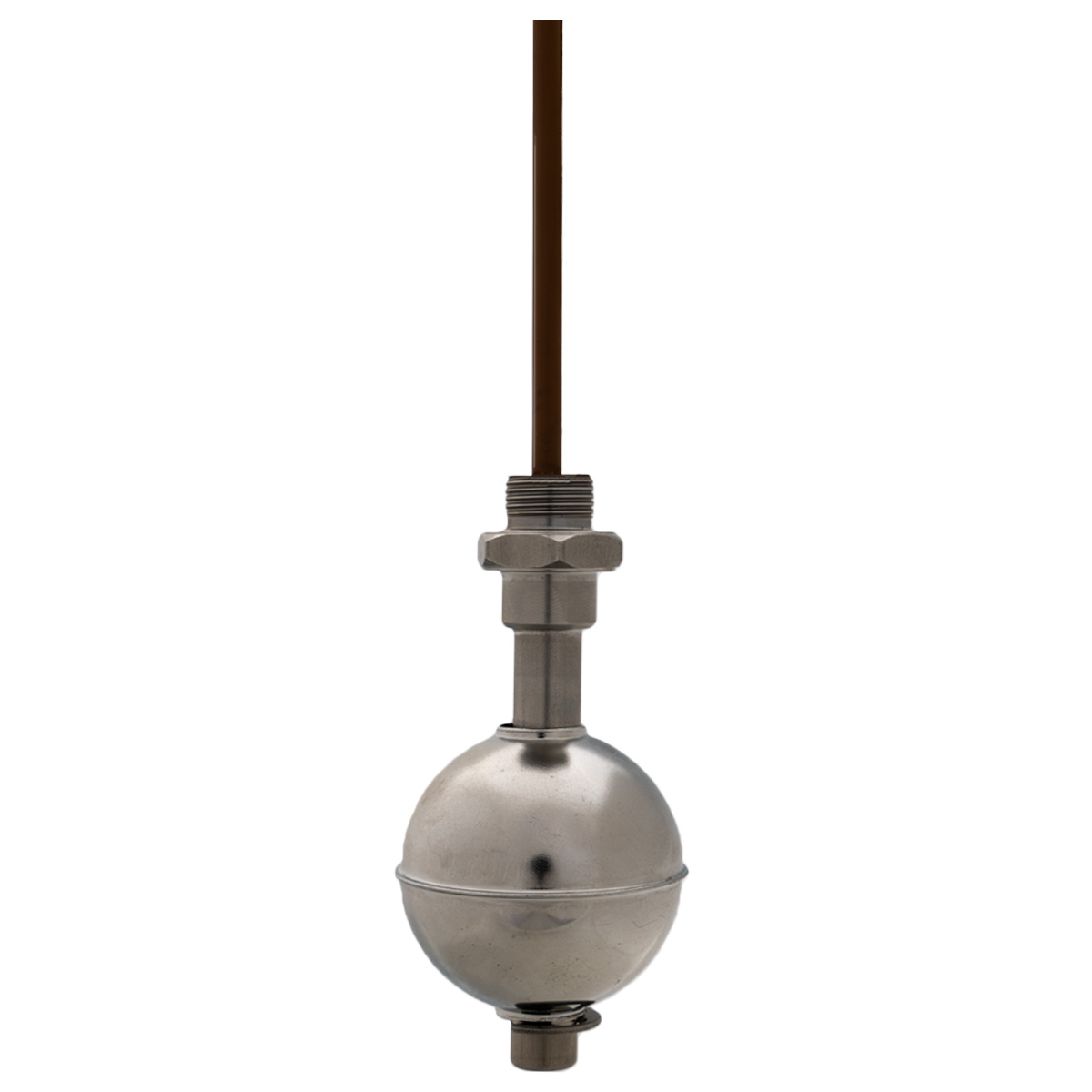

CLR20

The float level indicator CLR20 allows the measurement and control of liquids in industrial tanks, even in the presence of foam. It is composed of a permanent magnet and a frictionless reed switch, which guarantee robustness and reliability. The D.52 spheric float, the G 3/8” connection and the autonomous power supply allow for a small footprint installation. A curved version is available for lateral installations.

The operation of the float level indicator CLR20 is ensured in environments with temperature between -10 and +70°C and pressure up to 15 bar. Customizations can be made on the number of levels to measure, cable length and connector output.

Advantages of the float level indicator CLR20:

Easy installation. The product does not require calibration, maintenance or specific instruments for the installation.
Autonomous. It does not require external power supply.
Compact. The D.52 spheric float and the G 3/8” connection allow for a small footprint installation.
Adaptable to any liquid, even in the presence of foam.
Versatile installation, in vertical and lateral position.

Customizable with extensions, cable length on request and more levels of measurement.

CLC38

The float level indicator CLR20 allows the measurement and control of liquids in industrial tanks, even in the presence of foam. It is composed of a permanent magnet and a frictionless reed switch, which guarantee robustness and reliability. The D.52 spheric float, the G 3/8” connection and the autonomous power supply allow for a small footprint installation. A curved version is available for lateral installations.

The operation of the float level indicator CLR20 is ensured in environments with temperature between -10 and +70°C and pressure up to 15 bar. Customizations can be made on the number of levels to measure, cable length and connector output.

Advantages of the float level indicator CLR20:

Easy installation. The product does not require calibration, maintenance or specific instruments for the installation.
Autonomous. It does not require external power supply.
Compact. The D.52 spheric float and the G 3/8” connection allow for a small footprint installation.
Adaptable to any liquid, even in the presence of foam.
Versatile installation, in vertical and lateral position.

Customizable with extensions, cable length on request and more levels of measurement.

CLC40

Conductive level control for liquids. Versions with 2 or 3 stainless steelrods and with 1”1 / 2 Gas process connection.

Allows for the INDEPENDENT control of two levels. The instrument sensitivity is ADAPTABLE to the conductance of the liquid, and an intervention delay can be set when needed. CUSTOMIZABLE with different voltages.

Construction is made in compliance with the regulations in force in the European Union.

Casing in Nylon6+30% Glass-fiber. IP65 protection.
Available power supplies:
- V.110/220 a.c. 50/60 Hz.
- V.24/48 a.c. 50/60 Hz.
- V.24 d.c.
Use contact capacity: 5 A at 250 V AC.
Maximum operational pressure: 8 bar.
Ambient temperature range: -5 to +70°C.
Max. temperature storage bin inside: +90° C.

PFGLP

Conductive level control for liquids. Versions with 2 or 3 stainless steelrods and with 1”1 / 2 Gas process connection.

Allows for the INDEPENDENT control of two levels. The instrument sensitivity is ADAPTABLE to the conductance of the liquid, and an intervention delay can be set when needed. CUSTOMIZABLE with different voltages.

Construction is made in compliance with the regulations in force in the European Union.

Casing in Nylon6+30% Glass-fiber. IP65 protection.
Available power supplies:
- V.110/220 a.c. 50/60 Hz.
- V.24/48 a.c. 50/60 Hz.
- V.24 d.c.
Use contact capacity: 5 A at 250 V AC.
Maximum operational pressure: 8 bar.
Ambient temperature range: -5 to +70°C.
Max. temperature storage bin inside: +90° C.

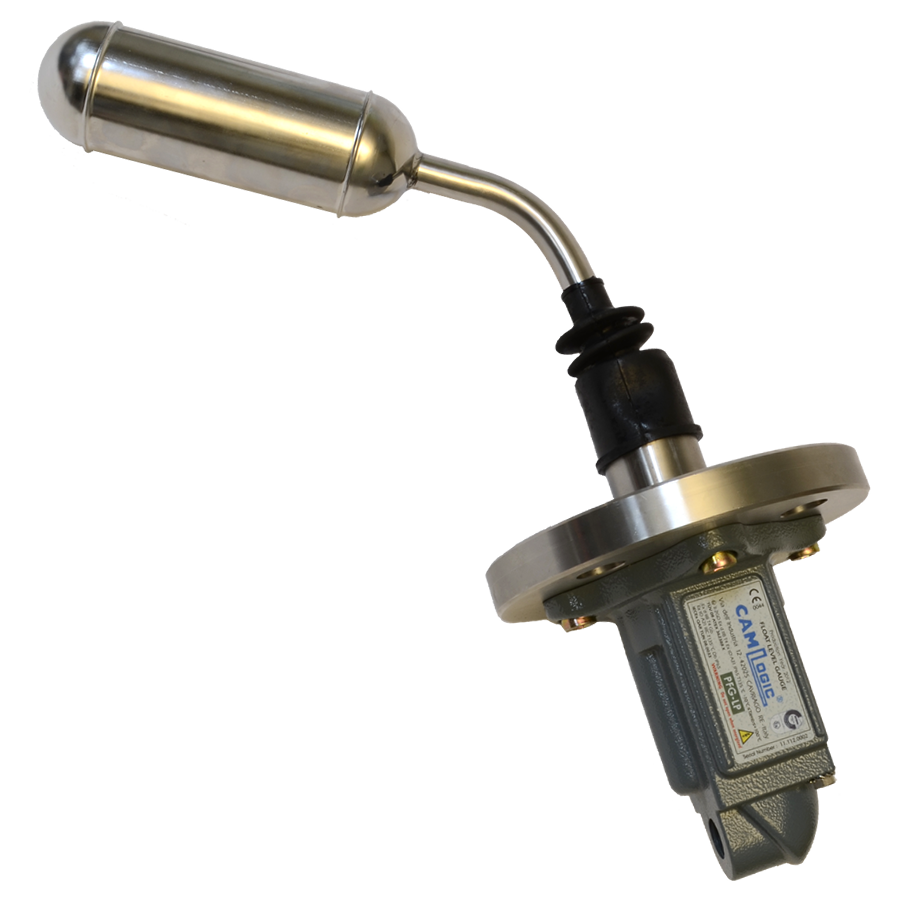

PFGLPC

Floating level indicator for detecting the level of liquids in tanks and cisterns. Parts in contact with the product in stainless steel. Version with flange DN40 and bent float.

Construction is made in compliance with the regulations in force in the European Union.

IECEX Certification
Certificate: QAR TUN 08.0033
Marking: Ex d IIB T4 Gb – Ex tD A21 IIIC T135°C Db IP65

ATEX Certification
Certificate: TÜV 08 ATEX 362388 X
Marking: Ex II 2GD Ex d IIB T4 Ex tD A21 IP65 T135°C

Die-cast aluminium casing, protection IP65.
Flange and float in stainless steel 18/10.
Covering bellow for the joint of the float in rubber.
Wiring with antivibrations Faston connectors.
Use contact capacity: 10 A at 250 V AC.
Maximum operational pressure: 25 bar.
Ambient temperature range: -10 to +100°C.

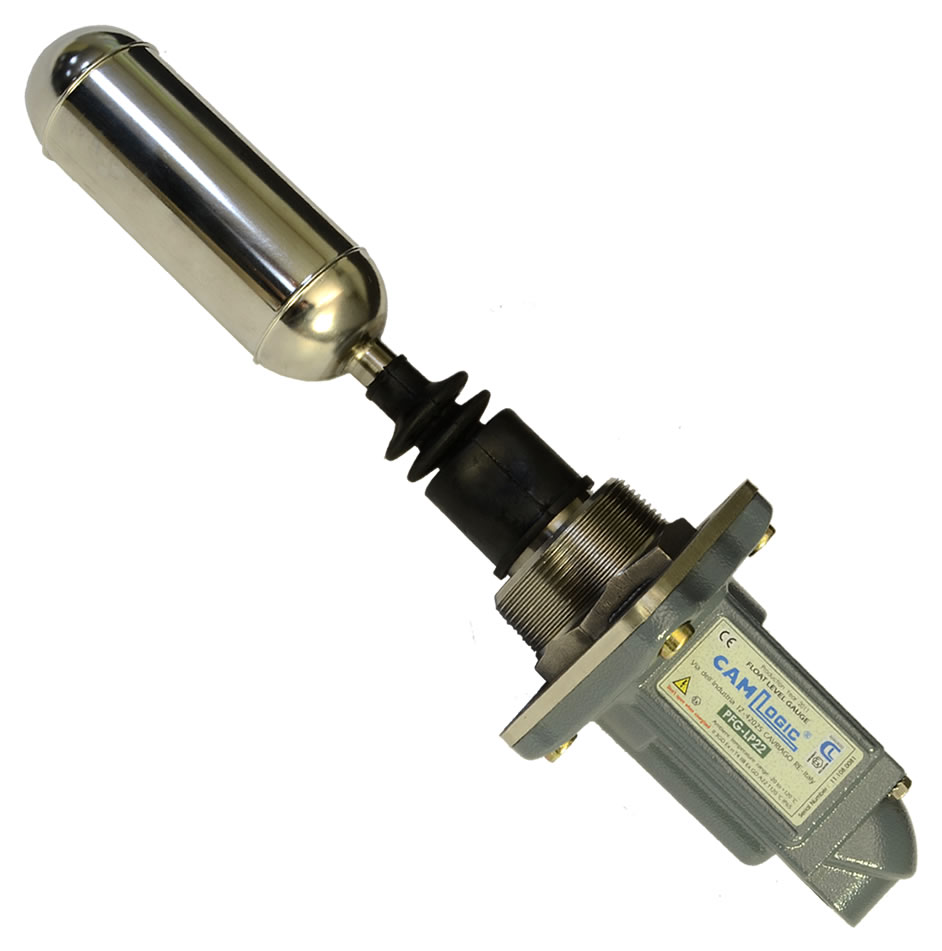

PFGLP22

Floating level indicator for detecting the level of liquids in tanks and cisterns. Parts in contact with the product in stainless steel. Version with male thread 2″ Gas.

Construction is made in compliance with the regulations in force in the European Union.

ATEX certified: Ex II 3GD Ex n T4 IIB Ex GD A22 T120 °C IP65 – CL 07 ATEX 0206

Die-cast aluminium casing, protection IP65.
Thread and float in stainless steel 18/10.
Covering bellow for the joint of the float in rubber.
Wiring with antivibrations Faston connectors.
Use contact capacity: 10 A at 250 V AC.
Maximum operational pressure: 25 bar.
Ambient temperature range: -10 to +120°C.

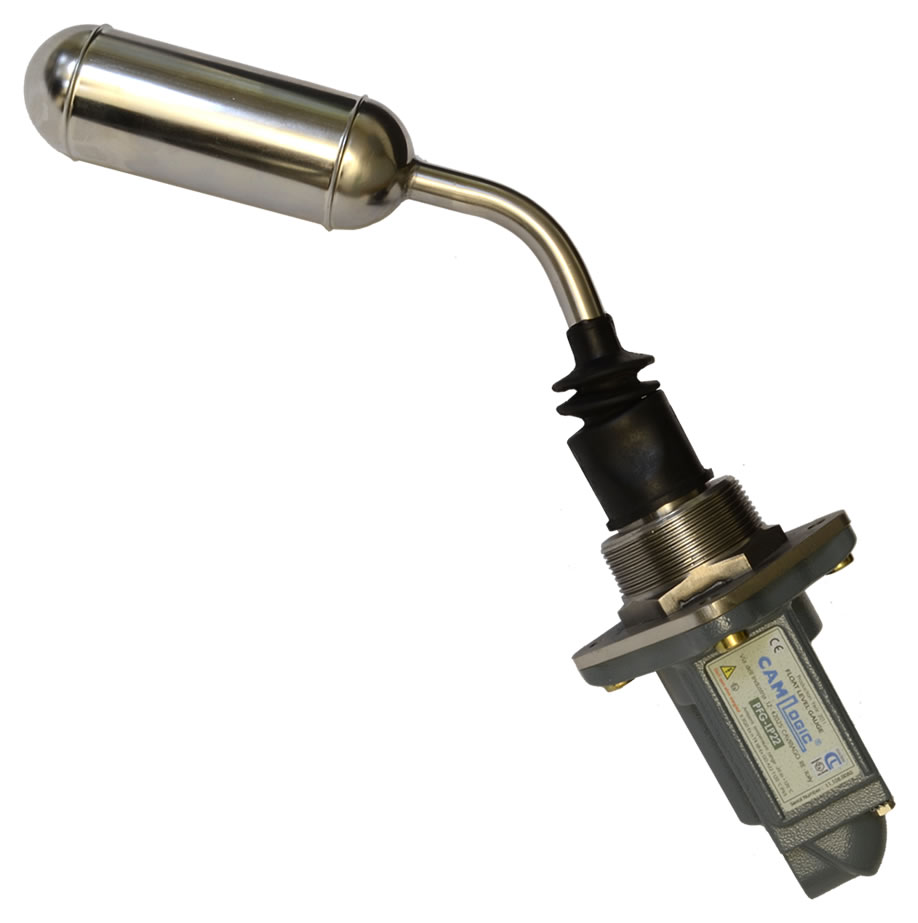

PFGLP22C

Floating level indicator for detecting the level of liquids in tanks and cisterns. Parts in contact with the product in stainless steel. Version with male thread 2″ Gas and bent float.

Construction is made in compliance with the regulations in force in the European Union.

ATEX certified: Ex II 3GD Ex n T4 IIB Ex GD A22 T120 °C IP65 – CL 07 ATEX 0206

Die-cast aluminium casing, protection IP65.
Thread and float in stainless steel 18/10.
Covering bellow for the joint of the float in rubber.
Wiring with antivibrations Faston connectors.
Use contact capacity: 10 A at 250 V AC.
Maximum operational pressure: 25 bar.
Ambient temperature range: -10 to +120°C.

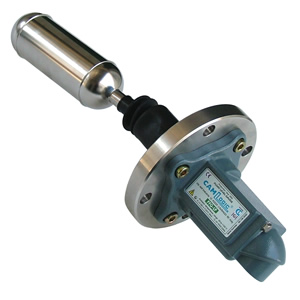

PFGLP22F

Floating level indicator for detecting the level of liquids in tanks and cisterns. Parts in contact with the product in stainless steel. Version with flange.

Construction is made in compliance with the regulations in force in the European Union.

ATEX certified: Ex II 3GD Ex n T4 IIB Ex GD A22 T120 °C IP65 – CL 07 ATEX 0206

Die-cast aluminium casing, protection IP65.
Flange and float in stainless steel 18/10.
Covering bellow for the joint of the float in rubber.
Wiring with antivibrations Faston connectors.
Use contact capacity: 10 A at 250 V AC.
Maximum operational pressure: 25 bar.
Ambient temperature range: -10 to +120°C.

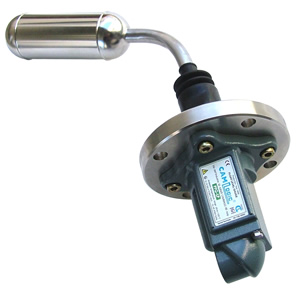

PFGLP22FC

Float level indicator for detecting the level of liquids in tanks and cisterns. Parts in contact with the product in stainless steel. Version with flange and bent float.

Construction is made in compliance with the regulations in force in the European Union.

ATEX certified: Ex II 3GD Ex n T4 IIB Ex GD A22 T120 °C IP65 – CL 07 ATEX 0206

Die-cast aluminium casing, protection IP65.
Flange and float in stainless steel 18/10.
Covering bellow for the joint of the float in rubber.
Wiring with antivibrations Faston connectors.
Use contact capacity: 10 A at 250 V AC.
Maximum operational pressure: 25 bar.
Ambient temperature range: -10 to +120°C.

SGP330

Flow sensor

Housing in brass with chromium plating, turbine system in Polyetherimide.
Connection thread 1/2″ Gas-double.
Nominal pressure 16 bar.
Continuous operating temperature 90°C.
Measurement range: 0,5 – 30 l/min.
Signal: NPN 10…30 Vcc

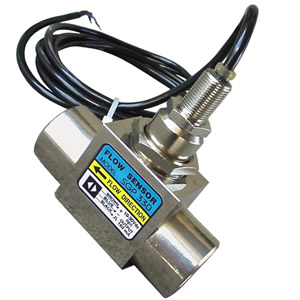

SGP331

Flow sensor

Housing in brass with chromium plating, turbine system in Polyetherimide.
Connection thread 1/2″ Gas-double.
Nominal pressure 16 bar.
Continuous operating temperature 90°C.
Measurement range: 0,5 – 30 l/min.
Signal: PNP 10…30 Vcc
