VFA BUTTERFLY VALVE

VFS STEEL VALVE

VGS SLIDE VALVES

VDS SAFETY VALVES

DV GRAVITY DIVERTER

.

_

Aluminum butterfly valve for handling powders available from Ø100 to Ø400 mm. The valve can be supplied for hot materials with manual lever or pneumatic drive.

1 VFA Butterfly Valve

VFA BUTTERFLY VALVE WITH MANUAL LEVEL
Kode ØA ØB ØC E F ØG ØG1 kg Fig.
VFA-100 100 180 220 183 222 220 4,5 1
VFA-150 150 200 228 233 272 18 228 5 1
VFA-200 200 250 278 287 322 18 280 7 1
VFA-250 250 300 328 337 372 18 335 8 2
VFA-300 300 350 378 387 422 22 385 11 2
VFA-350 350 400 420 439 489 22 445 20 3
VFA-400 400 470 530 530 559 25 515 23 4

NB. Evt. scroll horisontalt for fuld tabeloversigt.

VFA BUTTERFLY VALVE WITH MANUAL LEVEL
Kode A B C F ØN (DIN54B2) P Q R S ØT Z
CRP-80 92 285 130 66 19X22 65 90 54 76 8,5 50
CRP-100 112 295 140 66 19X22 65 90 54 76 8,5 50
CRP-125 137 430 196 89 25X28 68 106 60 84 10,5 80

NB. Evt. scroll horisontalt for fuld tabeloversigt.

2 VFS STEEL BUTTERFLY VALVE

Stål Butterfly Valve
kode ØA Øm ØB M A H
VFSQ1250 265 375 273 400 410 180
VFSQ1250 315 400 323 450 480 195

NB. Evt. scroll horisontalt for fuld tabeloversigt.

Stål Butterfly Valve
kode ØD Øm M A ØB ØE
VFSQ2250 265 375 400 410 300 330
VFSQ2300 315 400 450 480 350 380

NB. Evt. scroll horisontalt for fuld tabeloversigt.

Stål Butterfly Valve
Kode ØD Øm ØE H ØF N°Fori
VFS 250 265 300 330 170 11 8
VFS 300 325 375 425 185 14 8

NB. Evt. scroll horisontalt for fuld tabeloversigt.

_

Mild steel butterfly valve for handling powders, commonly used as discharge valve under silos is recommended for heavy duty applications. The valve can be supplied with manual lever only.

_

Heavy duty slide valve made of cast iron for powders or granular products. This equipment ensures high seal level as for the external environment and can be supplied in three sizes with manual wheel or with pneumatic drive.

3 VGS SLIDE VALVES

VGS Slide Valves
Kode A B C D E F G L ØR
VGS M250 250 358 20 3×106 70 408 390 998 M10
VGS M300 300 412 20 3×124 70 462 440 1102 M12
VGS M400 400 532 31 5×94 76 577 540 1317 M12

NB. Evt. scroll horisontalt for fuld tabeloversigt.

VGS Slide Valves
Kode A B C D E F G H L ØR
VGS P250 250 358 20 3×106 70 408 580 430 1418 M10
VGS P300 300 412 20 3×124 70 462 630 480 1572 M12
VGS P400 400 532 31 5×94 76 577 730 580 1887 M12

NB. Evt. scroll horisontalt for fuld tabeloversigt.

4 VDS SAFETY VALVES

_

Pressure relief valve designed to release exceeding air from the silo or to claim air from the external environment during silo’s filling evacuation, thus preserving silo’s integrity. The valve is made in mild steel and on demand can be supplied for hot products.

_

The 2 ways diverter valves DV for gravity-drop applications ensure efficient flow diversion for powdery or granular materials

5 DV GRAVITY DIVERTER

VFA BUTTERFLY VALVE WITH MANUAL LEVEL
Kode A B C D E F G H I L M
DV-150 260 175 15 15 246 269,5 353,5 288,5 180 494,5 31,5
DV-200 310,5 225 93,5 15 216,5 316,5 416,5 399 240 585,5 35
DV-250 260 275 110 15 360 360 360 386,5 300 671,5 38
DV-300 433,5 325 128,5 24 423 423 423 456,5 798,5 798,5 46,5

NB. Evt. scroll horisontalt for fuld tabeloversigt.

Filters

FGS ROUND DUST FILTER

FGM ROUND BAG FILTER

FGV ROUND DUST FILTER

MAXAIR VENT FILTER

EKO DUST FILTER

EKOM BAG FILTER

_

Round cartridge filters with automatic air cleaning system, available from 9 to 39 cu.m filtering surface. The filter is fully made of stainless steel and is possible design it with dust collector hopper and electric fan.

2.1 FGS ROUND DUST FILTER

Type

ØA
(mm)

ØE
(mm)

ØC
(mm)
G
(mm)
V
(mm)
S
(mm)
T
(mm)
H1
(mm)
P (MAX)
(mm)
H2
(mm)
R
(mm)
H3
(mm)
FSG/09  600 630 585 450 810 390 235 1435 540 1740 600 1180
FSG/11 960 1890
FSG/19  800 830 785 550 810 545 1745 840 1420
FSG/23 960 1895
FSG/32  1000 1030 985 650 810 640 1840
FSG/39 960 1990

NB. Evt. scroll horisontalt for fuld tabeloversigt.

2.2 FGM ROUND BAG FILTER

Type ØA
(mm)
ØE
(mm)
ØC
(mm)
G
(mm)
V
(mm)
S
(mm)
T
(mm)
H1
(mm)
P (MAX)
(mm)
H2
(mm)
R
(mm)
H3
(mm)
FGM.05 600 630 585 540 1620 390 235 2245 540 2250 600 1180
FGM.10 800 830 785 550 545 840 1420
FGM.15 1000 1030 985 650 640 2650

NB. Evt. scroll horisontalt for fuld tabeloversigt.

_

Round bag filters supplied from 9 to 15 m² filtering surface with automatic air cleaning system. The FGM is made of stainless steel and is available with dust collecting pre-separator and electric fan.

_

Round cartridge filters available from 20 to 37 m² filtering surface, with electric vibrator cleaning system. The FGV is made of stainless steel and is available with dust collecting pre-separator and electric fan.

2.3 FGS ROUND DUST FILTER

Type ØA
(mm)
ØE
(mm)
ØC
(mm)
G
(mm)
V
(mm)
S
(mm)
T
(mm)
H1
(mm)
P (MAX)
(mm)
H2
(mm)
R
(mm)
H3
(mm)
FGV.20  800 845 785 450 810 210 235 1255 545 1565 840 1420
FGS.24 960 1405 1715
FGV.31  1000 1030 985 550 810 1255 640 1660
FGV.38 960 1405 1810

NB. Evt. scroll horisontalt for fuld tabeloversigt

2.4 MAXAIR VENT FILTER

_

Dust collector supplied with 24 m² filtering surface and air cleaning system, is designed to be installed on top of silo as vent filters. Minimum dimensions and quick opening devices allow full safety and trouble-free maintenance for the operator. The MAXAIR is available with dust collecting pre-separator..

_

Dry batch filter supplied in 3 sizes 50, 72, 86 m² filtering surface, made of mild steel with full immersion air cleaning system. EKO filter is designed for dust collection from tack mixer inlet during the loading procedure and is available with dust collecting pre-separator maintenance door and electric fan.

2.5 EKO RECTANGULAR DUST FILTER

Type A
(mm)
B (MAX)
(mm)
H
(mm)
H1
(mm)
EKO.50.A 1260 740 3350
EKO.50.B0 1260 1500
EKO.72.A 1560 900 3810
EKO.72.B0 1560 1800
EKO.86.A 1760 900 4010
EKO.86.B0 1760 2000



2.6 EKOM RECTANGULAR BAG FILTER

Type Surface m² Capacity mc/h A L
ECOM-19-B0 19 1710 1250 1700
ECOM-25-B0 25 2250 1650 2100
ECOM-31-B0 31 2800 2000 2450

NB. Evt. scroll horisontalt for fuld tabeloversigt.

_

EKOM is a dust collector with bags elements suitable for static or dynamic execution.

The concept, the compact design and the two inspection doors installed grant a safety and fast maintenance without the aid of staircases.

The full immersion automatic cleaning system and the high efficiency bags elements make it suitable in various fields of application.

Safety Systems

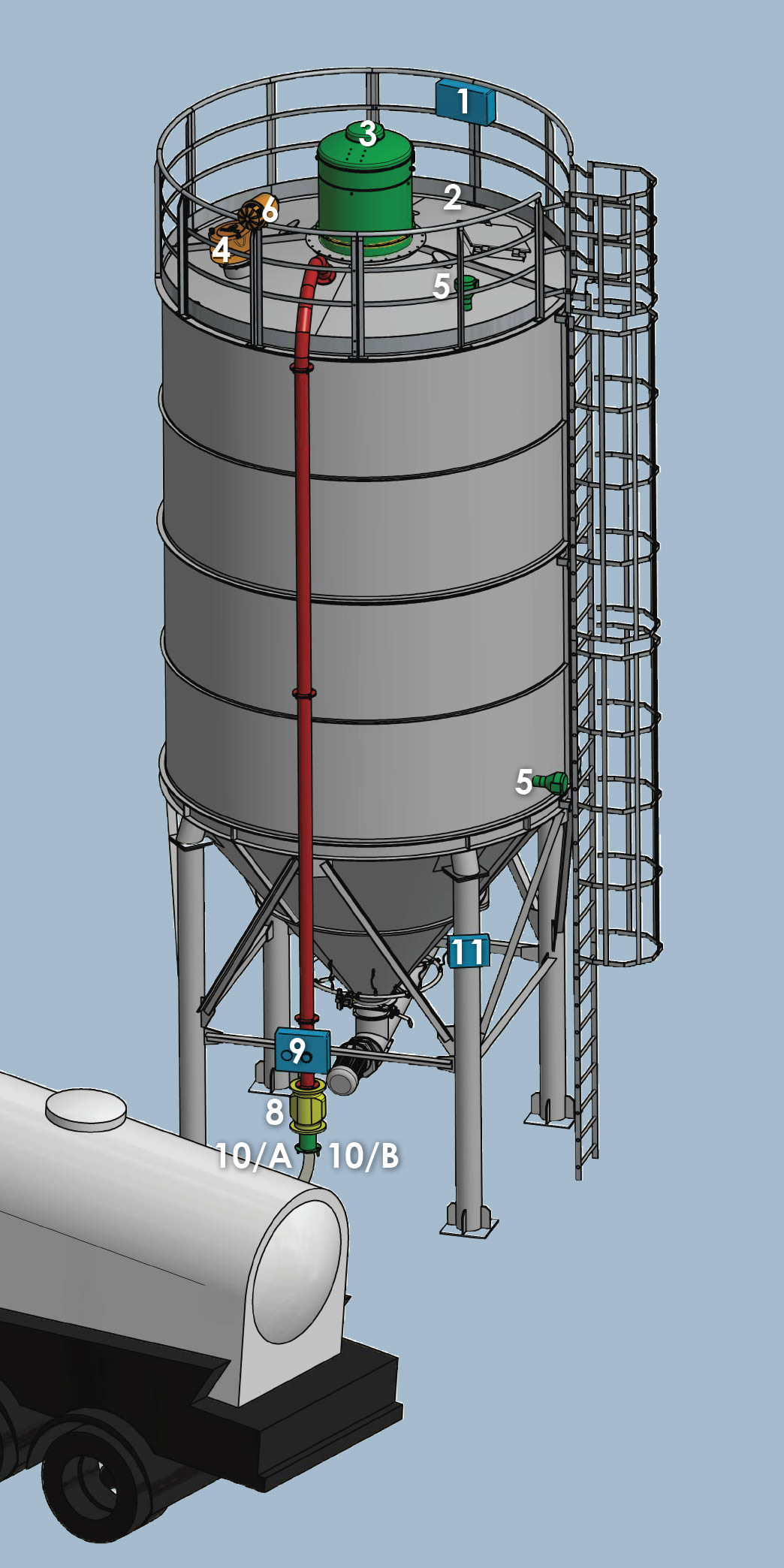

1 CONTROL BOX

The WICOM control box checks the air pressure into the silo and interacts with the several safety devices.

2 PNEUMATIC HOSE

The MS pneumatic hose is located on the silo’s roof to connect WICOM control box to the inside of the silo.

3 DEDUSTING FILTER

The de-dusting filter unit MAXAIR-24, is designed to collect and release into the silo the powder rising during the silo’s filling. OPTIONAL

4 PRESSURE VALVE

The VDS/273 is a pressure relief valve safety device which automatically opens in case of the internal pressure exceeds the design rate.

5 RLB LEVEL INDICATOR

The RLB level indicator, detects and displays via a lamp that the product has reached the maximum level in the silo.

6 SA SIREN

The SA siren, is a safety device which gives an acoustic warning at any anomaly in the safety system.

7 VISUAL TOUCH SCREEN

VISUAL is a touch screen PLC which controls the WICOM control box, locally or via remote access. Available in two sizes display: 4 or 7 inches.

8 VL PINCH VALVE

VL pinch valve, designed to close the fill line in case of emergency. Available in two sizes: DN80 and DN100.

9 PN PNEUMATIC BOX

The PN pneumatic box contains the fittings to connect the pinch valve and the AIR pressure switch.

10/A E-100 ADAPTOR

The E-100 adaptor ensures the connection between the tank lorry and the silo’s fill pipe via a STORZ coupling. Available in two sizes: DN80 and DN100.

10/B IT-100 ADAPTOR

The IT-100 adaptor ensures the connection between the tank lorry and the silo’s fill pipe via a PIN coupling. Available in two sizes: DN80 and DN100.

11 CM TERMINAL BOX

The CM terminal box collects all the cables coming from the devices and connects to the WICOM control box via ONE cable only.
